[Characteristics & Value]

Using HMWHDPE as raw materials with other additaments, resistant to corrosion, frost, UV rays, oxygenation, chemical reactions and oil. 100% recyclable, no pollution & absolutely environmental friendly.

Anti-sliding design on the surface and the round smooth corners secure the usual dangers happened to cement & woods constructions, for exemples, sliding, injuries by hook or nails.

High floating load capacity, stable and durable: + 320 kg / ㎡

Cost advantages: +15 years l ife circle, almost without any needs for maintenance or repair.

Easy, quick & flexible assembly as well as dismantling for various configurations wished. Combi-Cubes modular system offers the possibilities for changing the configuration forms according to the site necessities.

The constructions with various colorful Combi-Cubes combinations offer an esthetically beautiful views and reach a high quality standard.

To the Combi-Cubes constructions, it can also be equipped with suitable accessories for completing the usage, for exemple, boat hooks, anti-collision rubber ball, bridges, etc.

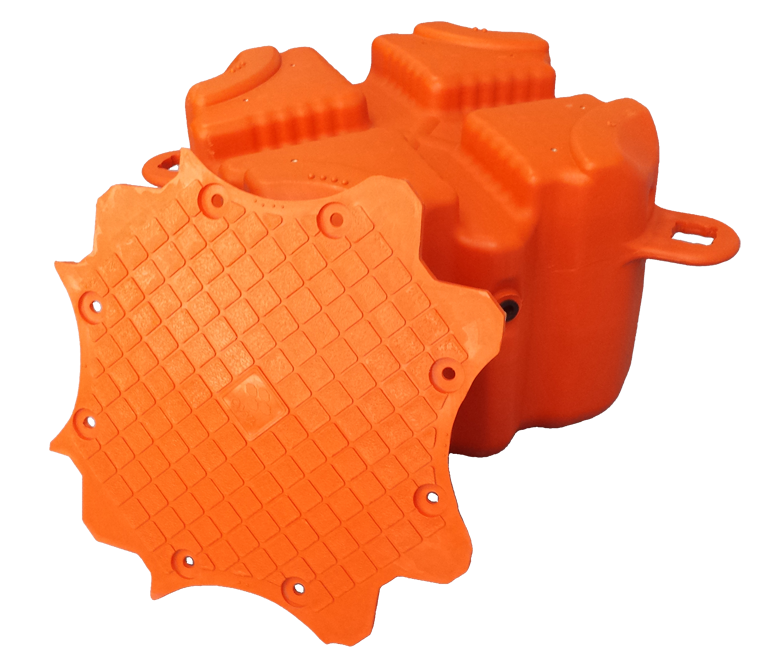

Model A
	Dimention:50cm x 50cm x 40cm (L x W x H) ± 0.3cm Weight: ca.7kg/ pc ± 0.2kg/ pc Floating capacity: ca. 320 kg/㎡ Raw material:HMWHDPE Execution standard:Q/OYYA11-2016 Colors available: orange deep blue green gray black caramel

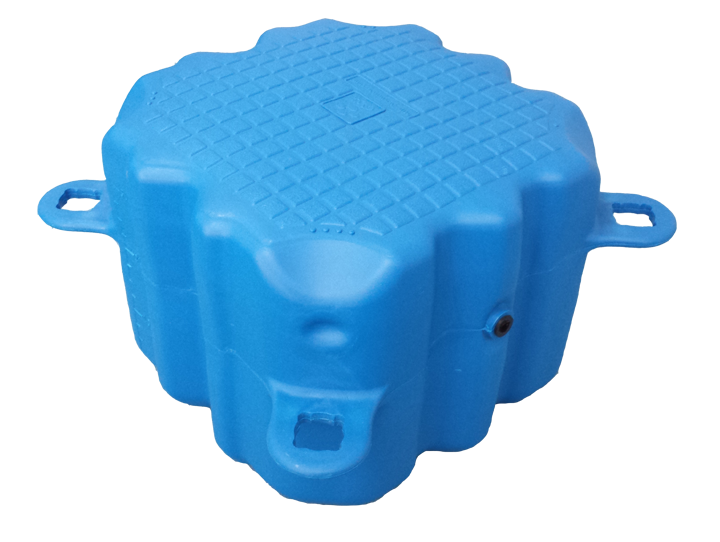

Model B
	Dimention:50cm x 50cm x 40cm (L x W x H) ± 0.3cm Weight: ca.7kg/ pc ± 0.2kg/ pc Floating capacity: ca. 320 kg/㎡ Raw material:HMWHDPE Colors available: orange gray

Model C
	Dimention: 50cm x 50cm x 25cm (L x W x H) ± 0.3cm Weight: ca.5.6kg/ pc ± 0.2kg/ pc Floating capacity: ca. 220 kg/㎡ Raw material: HMWHDPE Colors available: orange deep blue green gray black caramel

Model V
	Dimention: 50cm x 50cm x 30cm (L x W x H) ± 0.3cm Weight: ca.5.8kg/ pc ± 0.2kg/ pc Raw material: HMWHDPE Colors available: orange deep blue green gray black caramel

Model U
	Dimention: 100cm x 50cm x 30cm (L x W x H) ± 0.3cm Weight: ca.10.5kg/ pc ± 0.2kg/ pc Raw material: HMWHDPE Colors available: orange gray

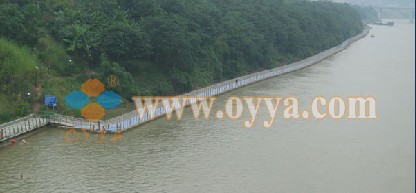

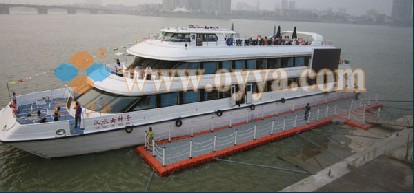

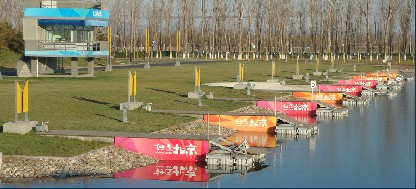

Marina, ferry terminal, motor boat docks, Floating dock,

Pontoon, water trails, water corridors, water platform, sightseeing pontoon

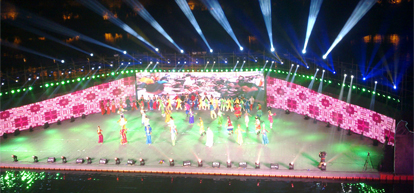

Water performance stage, water stage,
water platforms, floating platforms,Water table, moving raft, water huts

Water performance stage, water stage,

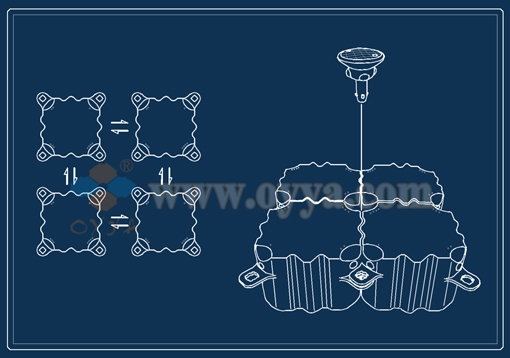

The main features of the Combi-Cubes are the four fixing lugs around the cube and the pin in the middle which holds the four lugs coming together when we assemble 1 ㎡ with 4 Combi-Cubes. In this module system way, we can expand the assembled surfaces to any form, any size as we wish. The Combi-Cubes can also be used for 2 thickness, this means 2 levels of Combi-Cubes fixing with longer pin.

Certificat

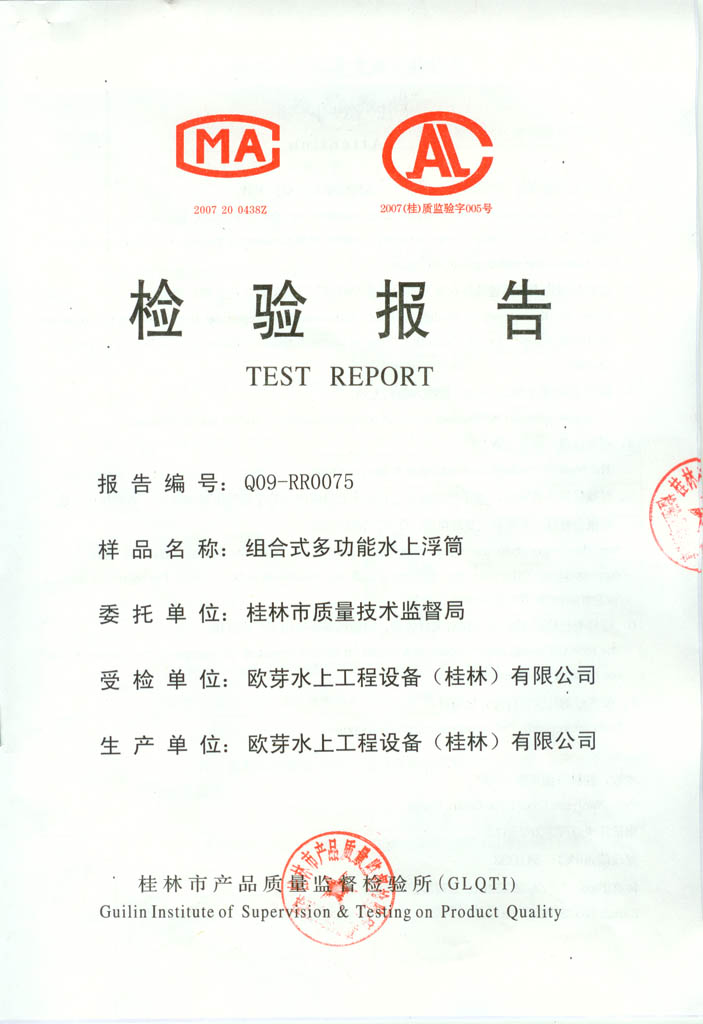

	Subject：Certificate of the quality of Combi-Cubes Time： 2018-5 Description：Certificate for green & hygienic tests

Register o

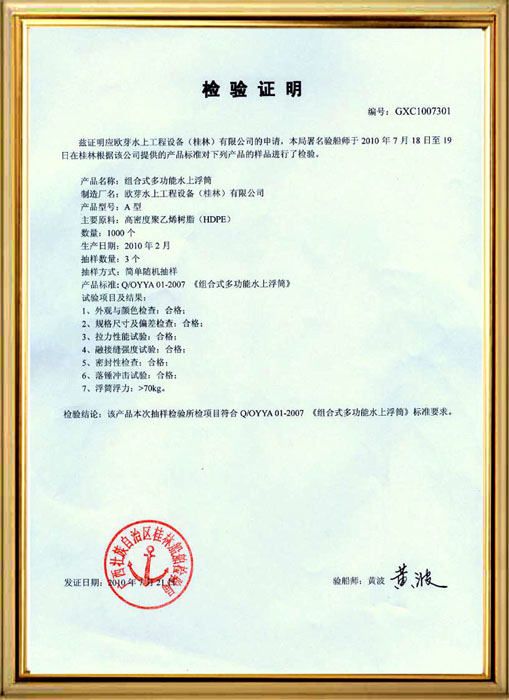

	Suject: Register of Shipping's certificate Time: 2010-7

Burning Te
	Subject: Burning Test Time: 2014-6 Description: Set fire over the Combi-Cubes with gasoline,the fire was extinguished automatically after the gasoline was burned out.Only a minimum carbonized surface of the Combi-Cubes was caused. A lowest burning point and highest melting point of the Combi-Cubes are assured.

Collision
	Subject: Collision Test Time: 20014-6 Description: Only a surface deformation was caused dropping an iron object of 25kgs from 5 m height. The structure of the platform undamaged. This deformation can easily be replaced by putting new Combi-Cubes.

Elongation
	Subject: Collision Test Time: 2014-6 Description: Every lug of the sole Combi-Cube can afford 1000 kgs extension power without being deformed or broken.

Short Pin Long Pin ShortScrew&Nut Washer

Single bollard Double bollard Gangway
